Caratteristiche

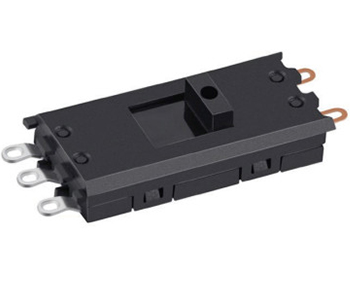

| Slide Switch Model: Knd-1-Ns002d-R2 |
| Solder Connector Type; |
| Single Pole Four Throw, Multi-Circuit |
| Rating: ▲ 10A 250VAC μ T85 (CQC) ▲ 10(2)A 250VAC μ T8 |
| Contact Resistance: <50mfi (INITIAL) |
| Insulation Resistance: >100MΩ(DC500V/1MIN) |
| Dielectric Strength: 1500V /0.5mA/1MIN |
| Mechanical Life: >50000 Cycles Electrical Life: >10000 Cycles |
| Solder Ability Of Terminal: Max350°C, 3S |
| Operation Force:600±200gf |
| All Materials Are Rohs Compliant |
Certificazioni
Scheda Prodotto
Clicca qui per scaricare il pdf
