Automatic reset, open on rise (normally closed) or close on rise (normally open)
Single pole, single throw (SPST)
Cost effective, compact, high reliability, long life, ROHS compliant

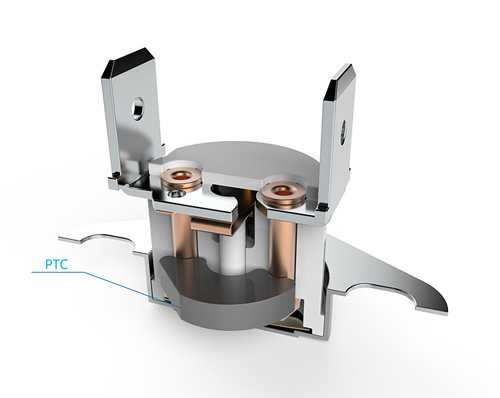

PTC heating prevents device from automatic resetting until unplugging the power cable
Ceramic construction, CTI 250
Applications
Room heater, oil-filled radiator etc..
Specifications
Operating temperature range: 45～180℃ (113～356°F)
Temperature differentials : 10～55 K (difference between nominal off and on temperatures)
Temperature tolerance: ±3.0K, ±5.0K
Contact resistance: 50mΩor less
Electrical Rating:
|
Electrical rating |
Agency approvals |
|||||
|
VDE |
UL |
TÚV |
CQC |
Life cycles |
Remarks |
|
|
AC250V/10A |
|
|
|
|
30k |
|
|
AC250V/16A |
|
|
● |
● |
30k |
|
